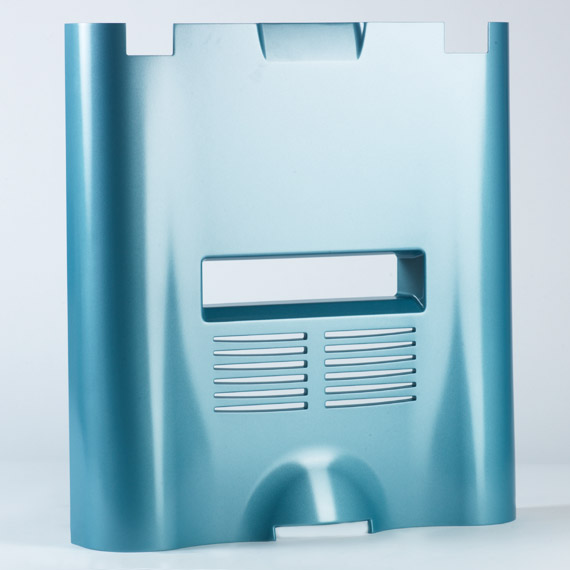

  • Thermoformed Multi-Part Medical Device View #1
  • Thermoformed Multi-Part Medical Device View #2

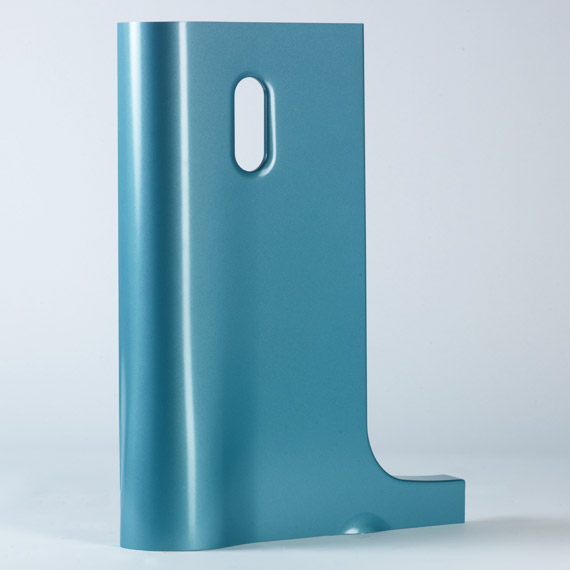

  • Thermoformed Multi-Part Medical Device View #3

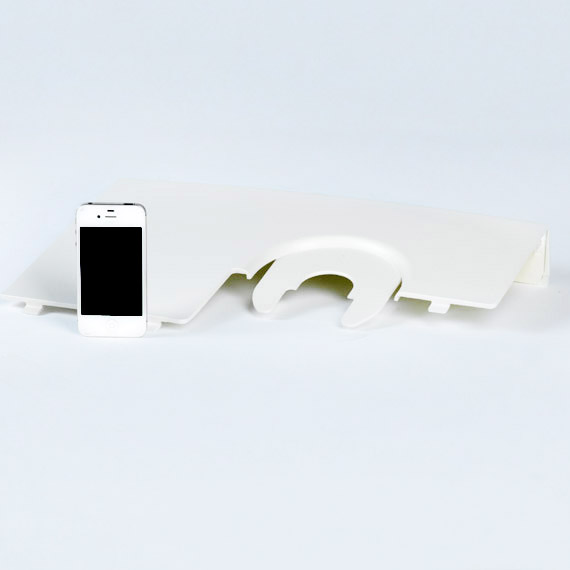

  • Thermoformed Multi-Part Medical Device View #4

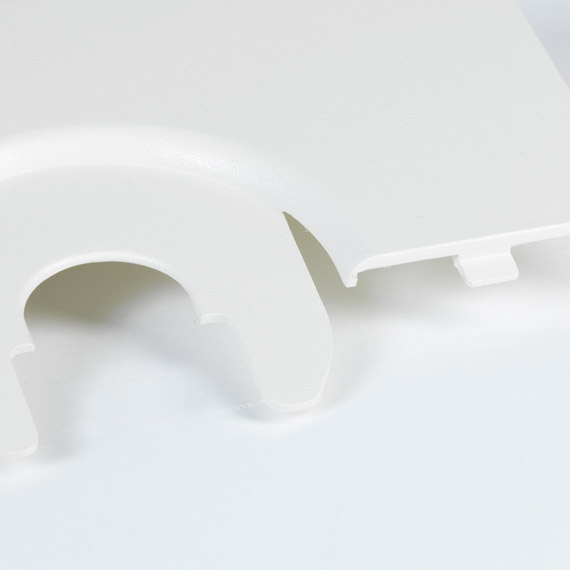

  • Thermoformed Multi-Part Medical Device View #5
Thermoformed Multi-Part Medical Device Thumbnail View #1 Thermoformed Multi-Part Medical Device Thumbnail View #2 Thermoformed Multi-Part Medical Device Thumbnail View #3 Thermoformed Multi-Part Medical Device Thumbnail View #4 Thermoformed Multi-Part Medical Device Thumbnail View #5

Multi-Part Medical Device

MATERIAL Fire Retardant ABS, UL 94 V-0 Flame Rating
Process Pressure Forming
SECONDARY OPERATIONS Painting & Assembly
INDUSTRY Medical Equipment

Project Summary

The individual parts shown here are just 3 pieces in a complex 14-part assembly produced entirely by Ray Products. Producing an assembly of this complexity required precise tolerances and considerable engineering expertise. Throughout the assembly openings in individual parts were molded in first as pockets, then trimmed from the inside to create a highly cosmetic appearance. Individual parts had a variety of assembly hardware attached including thermally installed brass inserts, ball studs, mounting and locating tabs and bosses.

Individual parts were painted with a high-gloss two-component polyurethane paint, and assembled at our factory before being delivered to the client.
