Multi-Part Vented Medical Cart

MATERIALFire Retardant ABS, UL 94 V-0 Flame Rating
ProcessPressure Forming
SECONDARY OPERATIONSEMI/RFI Shielding, High-Gloss Metallic Painting, Silkscreening & Multi-Part Assembly
INDUSTRYMedical Equipment

Project Summary

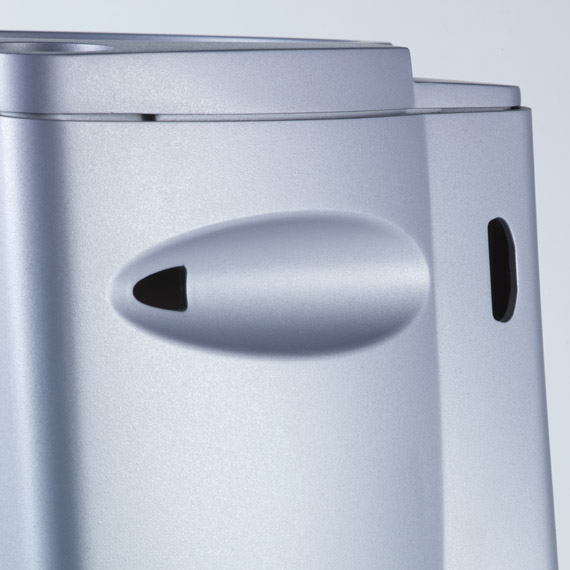

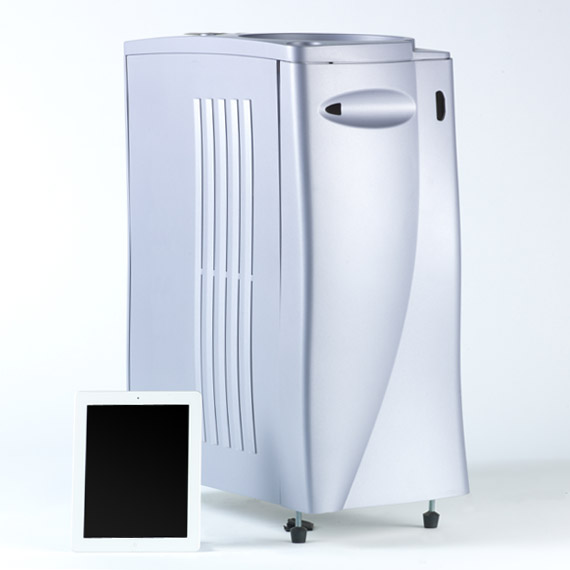

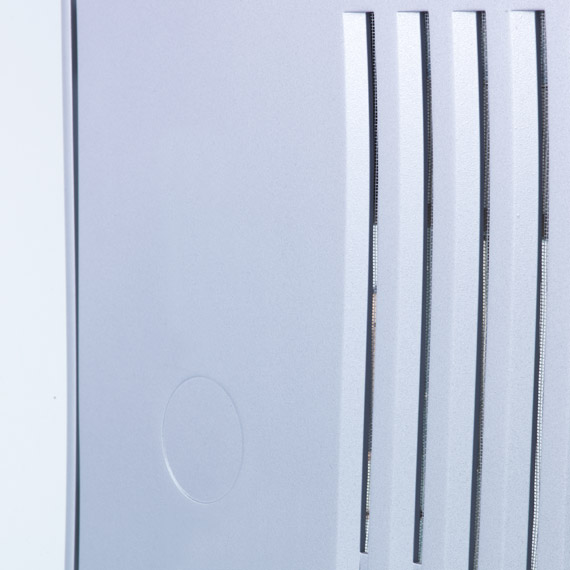

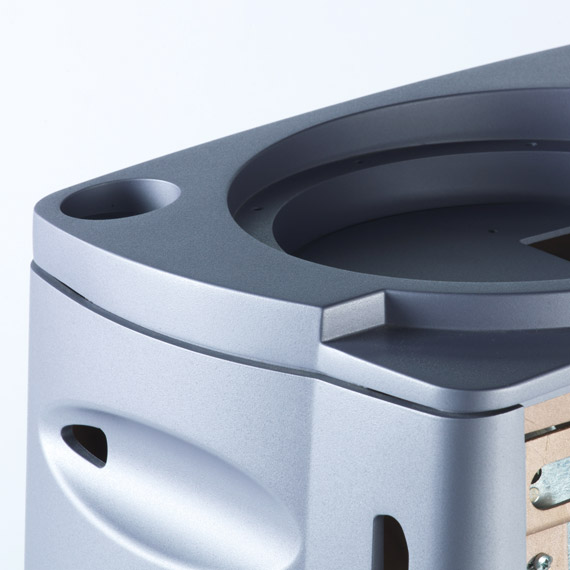

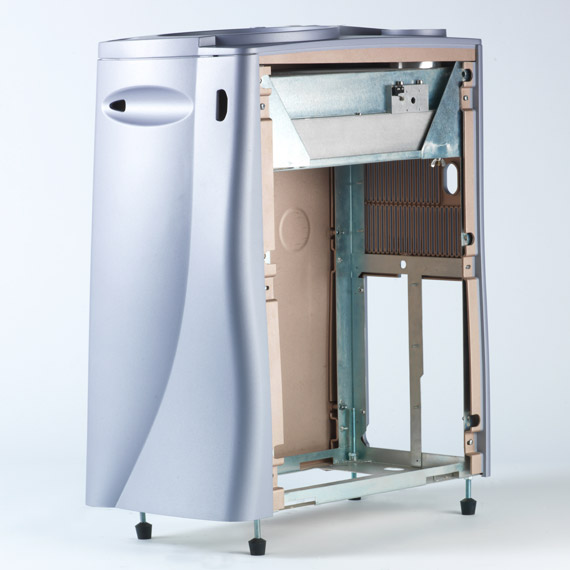

This medical cart incorporates 5 pressure formed parts, all mated to a sheet metal chassis before being shipped to the customer as part of our in-house assembly process. The attachment points are molded into the sidewalls of the parts, to allow for quick and easy attachement to the frame. The formed-in details in the panels showcase our ability to mold highly cosmetic surfaces with tight tolerances.

The individual parts were EMI/RFI shielded, painted in a high gloss metallic finish, silkscreened and assembled in our factory before being shipped to the customer.
