Cell Imaging

MATERIALUL 94 V-0 Flame Rated Material & Tinted Polycarbonate
ProcessPressure Forming
SECONDARY OPERATIONSPainting, Silkscreening, Hardware Installation
INDUSTRYMedical Equipment

Project Summary

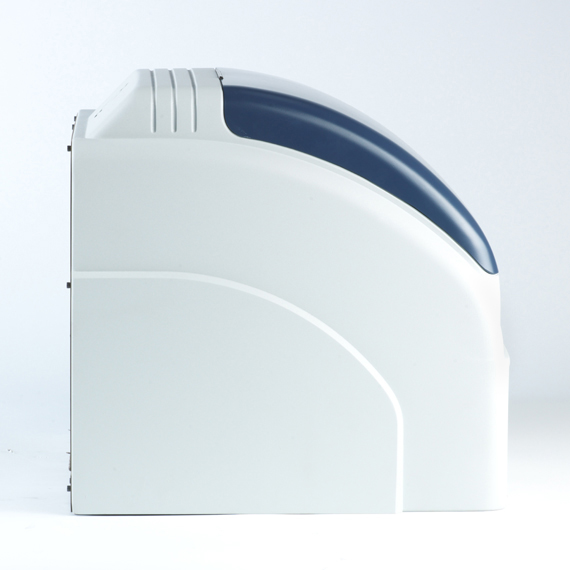

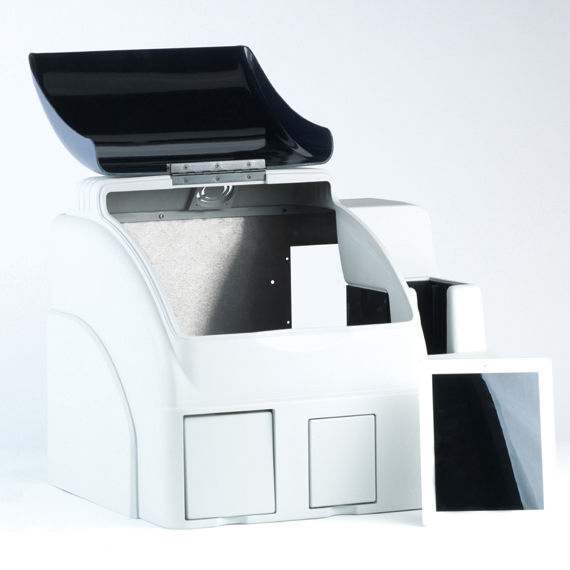

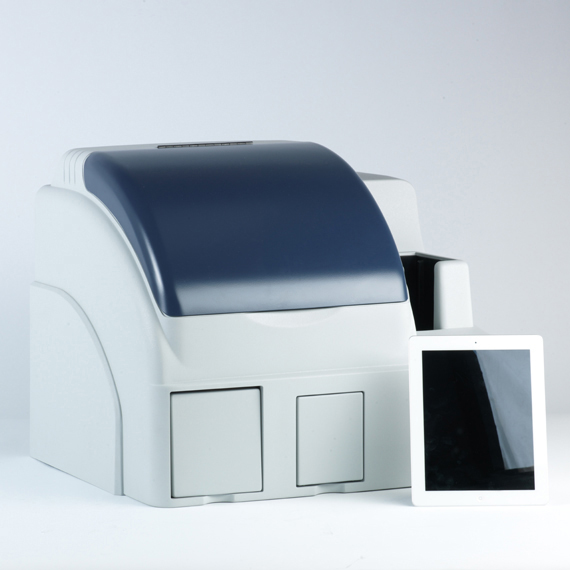

When designing the outer covers for its new automated cell-imaging system, this Southern California based medical company turned to Ray Products and Pressure Forming. The main housing is approximately 36” x 36” and has formed-in features for two small access doors.  All parts are pressure formed using UL 94 V-0 flame rated material. The curved top cover is molded in tinted polycarbonate.  External skins are painted and silkscreened.  Hinge mounts and other hardware were installed prior to shipment.
