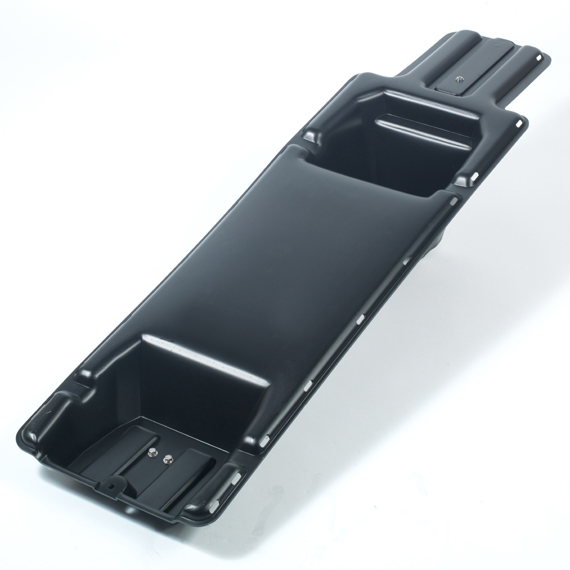

![Thermoformed Solar Racking View #1](https://b3169674.smushcdn.com/3169674/wp-content/uploads/2013/04/Solar_Racking_1.jpg?lossy=0&strip=1&webp=1)

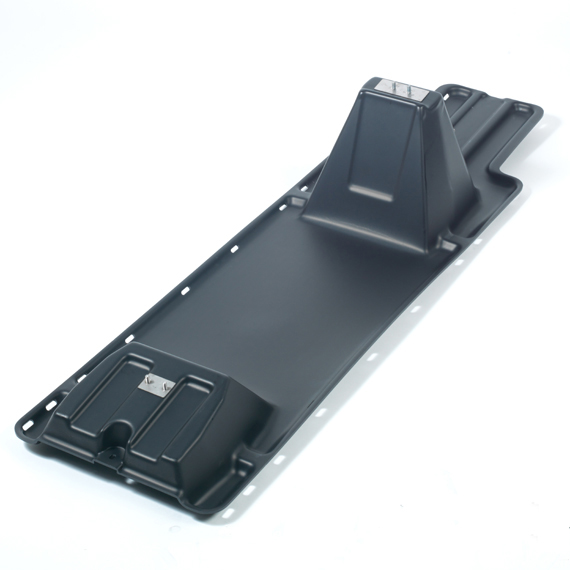

![Thermoformed Solar Racking View #2](https://b3169674.smushcdn.com/3169674/wp-content/uploads/2013/04/Solar_Racking_2.jpg?lossy=0&strip=1&webp=1)

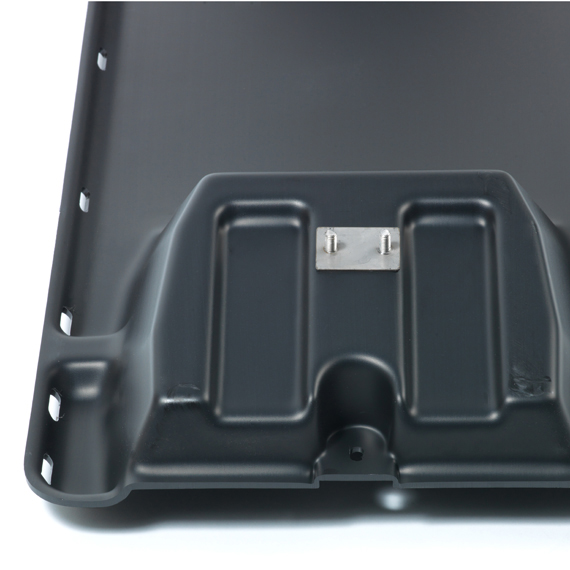

![Thermoformed Solar Racking View #3](https://b3169674.smushcdn.com/3169674/wp-content/uploads/2013/04/Solar_Racking_3.jpg?lossy=0&strip=1&webp=1)

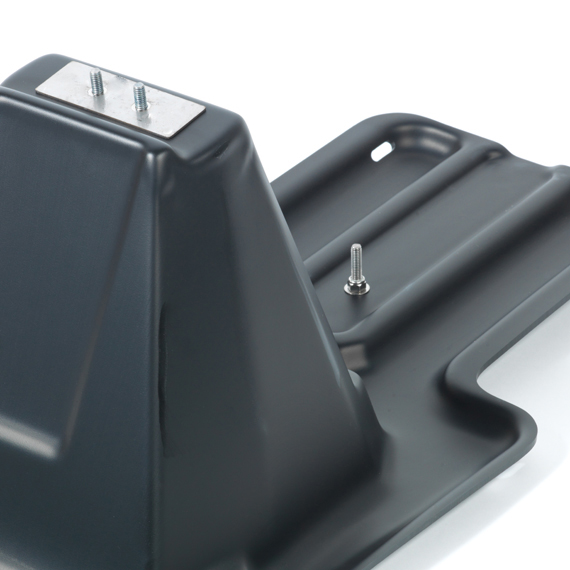

![Thermoformed Solar Racking View #4](https://b3169674.smushcdn.com/3169674/wp-content/uploads/2013/04/Solar_Racking_4.jpg?lossy=0&strip=1&webp=1)

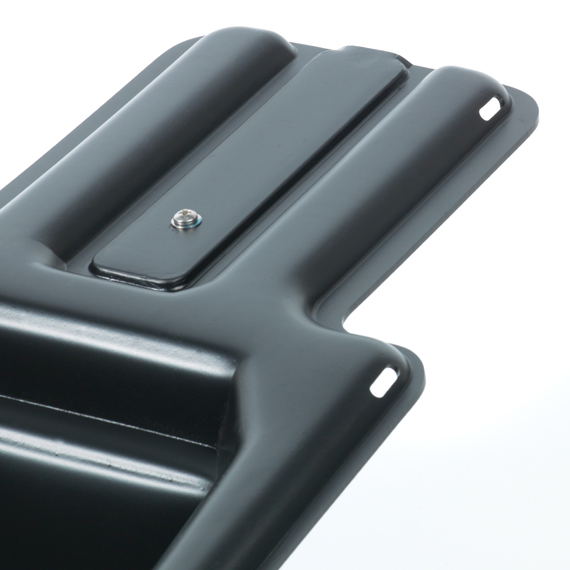

![Thermoformed Solar Racking View #5](https://b3169674.smushcdn.com/3169674/wp-content/uploads/2013/04/Solar_Racking_5.jpg?lossy=0&strip=1&webp=1)
![Thermoformed Solar Racking Thumbnail View #1](https://b3169674.smushcdn.com/3169674/wp-content/uploads/2013/04/Solar_Racking_1-150x150.jpg?lossy=0&strip=1&webp=1)
![Thermoformed Solar Racking Thumbnail View #2](https://b3169674.smushcdn.com/3169674/wp-content/uploads/2013/04/Solar_Racking_2-150x150.jpg?lossy=0&strip=1&webp=1)
![Thermoformed Solar Racking Thumbnail View #3](https://b3169674.smushcdn.com/3169674/wp-content/uploads/2013/04/Solar_Racking_3-150x150.jpg?lossy=0&strip=1&webp=1)
![Thermoformed Solar Racking Thumbnail View #4](https://b3169674.smushcdn.com/3169674/wp-content/uploads/2013/04/Solar_Racking_4-150x150.jpg?lossy=0&strip=1&webp=1)
![Thermoformed Solar Racking Thumbnail View #5](https://b3169674.smushcdn.com/3169674/wp-content/uploads/2013/04/Solar_Racking_5-150x150.jpg?lossy=0&strip=1&webp=1)
Solar Racking
MATERIAL | High Molecular Weight Polyethylene (HMWPE) |
---|---|
PROCESS | Large-Part Thermoforming |
SECONDARY OPERATIONS | Form, Trim and Pack |
INDUSTRY | Solar Energy |
Project Summary
When the leader in one-piece easy-to-install solar-mounting systems needed a manufacturing partner, they chose Ray Products. Our ability to mold large parts (up to 10 x 18 feet) allowed a multi-cavity tool to be produced, allowing the manufacturing of high volumes in short lead times. Utilizing an assembly cell at the 6-axis robotic trimming station allowed for the molding, trimming and assembly of the product in a continuous cycle.
