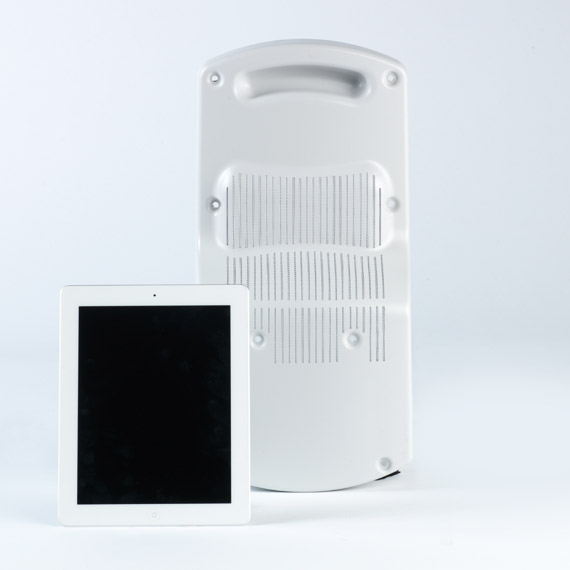

  • Thermoformed Multi-Part Medical Cart View #1

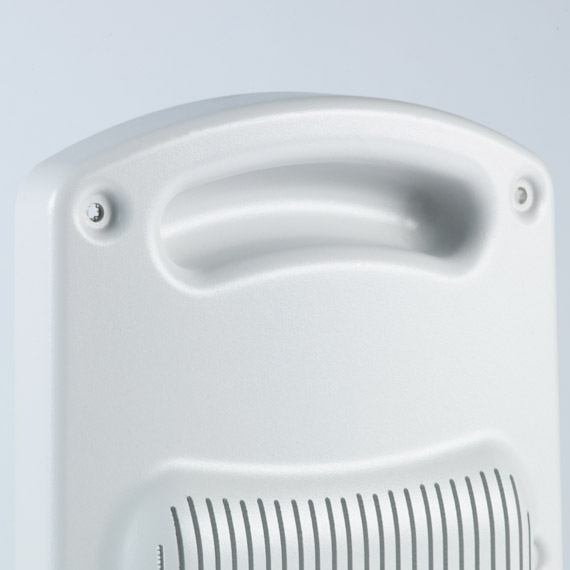

  • Thermoformed Multi-Part Medical Cart View #2

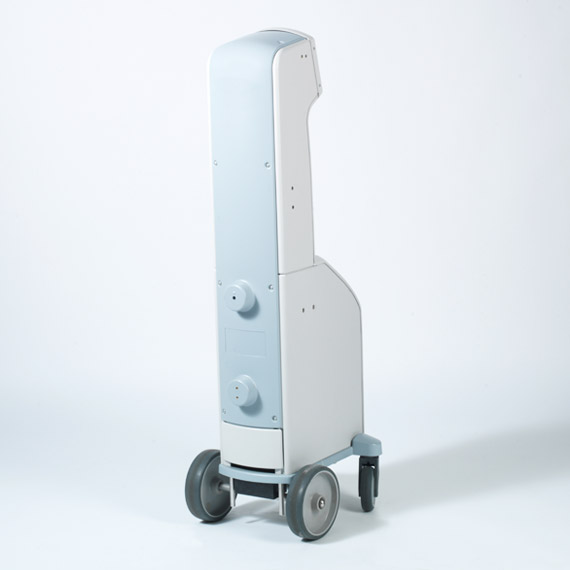

  • Thermoformed Multi-Part Medical Cart View #3

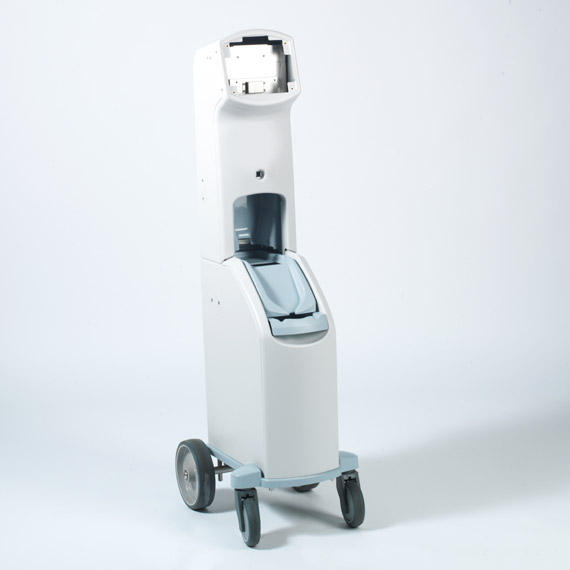

  • Thermoformed Multi-Part Medical Cart View #4
Thermoformed Multi-Part Medical Cart Thumbnail View #1 Thermoformed Multi-Part Medical Cart Thumbnail View #2 Thermoformed Multi-Part Medical Cart Thumbnail View #3 Thermoformed Multi-Part Medical Cart Thumbnail View #4

Multi-Part Medical Cart

ProcessPressure Forming, Molded in Color and Texture
SECONDARY OPERATIONSMulti-Part Assembly
INDUSTRYMedical Equipment

Project Summary

Ray Products manufactured the multi-color multi-part enclosure for this lifesaving medical device using custom colors of thermoplastic material.

The cosmetic surfaces are achieved by applying a Mold Tech Acid Etch Texture to the tool surface. As a result, the parts required no additional finish to achieve this attractive appearance.

The medical cart used a sheet metal chassis for attachment points and the client’s logo was applied using Ray Products’ in-house silk-screening capabilities.
